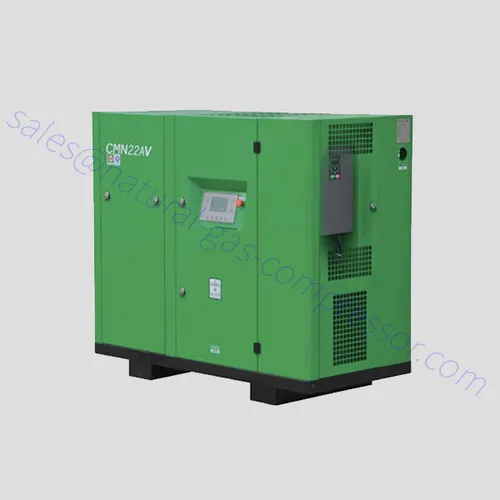

Variable Frequency Flammable And Explosive Gas And Special Required Gas Compressor Of CMN/AV Series

Description

Variable Frequency Flammable And Explosive Gas And Special Required Gas Compressor

A variable frequency compressor for flammable, explosive, or special required gas applications would require specific design considerations to ensure safe and efficient operation.

Firstly, the materials used in the compressor should be carefully selected to ensure compatibility with the gas being compressed. This may include using special coatings, seals, or other materials that resist corrosion, erosion, or chemical reactions.

Secondly, the compressor should be designed with explosion-proof features, such as spark-resistant materials, grounding points, or seals to prevent gas leakage. It should also include safety features, such as automatic shut-off valves or alarms to detect and respond to any dangerous conditions.

Thirdly, the compressor should have a variable frequency drive (VFD) to control the speed of the compressor motor. This allows for precise control of the gas flow and pressure while minimizing energy usage and reducing wear and tear on the compressor.

Overall, a variable frequency compressor for flammable, explosive, or special required gas applications should be designed with safety as the top priority, while also providing reliable and efficient performance.

Application of Variable Frequency Technology

When the exhaust pressure is stable, the CMN variable frequency screw air compressor can precisely change the speed according to the air consumption, so that the air compressor can only produce the required air volume. In order to achieve the purpose of energy saving, the energy saved exceeds the cost of the air compressor itself.

Efficient Power Returns

The displacement of the inverter compressor is perfectly combined with the gas consumption, completely avoiding the loss of unloading power. The pressure is reduced by 0.2MPa, which directly saves energy by 14%.

Arbitrary pressure set, and keep constant pressure supply

The machine can meet the user’s set pressure within the range of 0.4-1.2MPa (note: the maximum pressure needs to be determined when purchasing the machine), and the unit always maintains a constant pressure gas supply of ±0.01MPa. When the gas consumption increases, the unit will automatically increase the speed; when the gas consumption decreases, the unit will automatically reduce the speed to maintain the continuous supply pressure of the system.

More reliable operation

Frequency conversion soft starts to prevent the impact of the grid and avoid the mechanical impact of the machine itself. No contactor, no electrical contact failure, more stable and reliable operation.

Technical Parameters of Variable Frequency Micro Oil Screw Air Compressor of Cmn/Av Series
